Specifications:

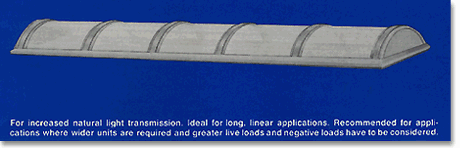

ARC-O-LITE Cold formed Continuous plastic skylights manufactured by Architectural Plastics Limited, Mississauga, Ont.; of size and type as shown on the drawing for 100mm (4") wide curb; complete with [clear] [white translucent] [single acrylic dome] [clear outer dome] [clear] [white translucent] [inner dome] and 6063-T5 mill finished extruded aluminum alloy frame, and pre-arced aluminum mullions with resilient gaskets, spaced [approximately 1219mm (4'0") on centre], and vertical end panels.
   Rochester - Midland Oakville

Sizes Data

Continuous skylights (cold formed domes) are manufactured on a custom basis. Any length may be specified and any width up to 3.35m (11'0") for outside curb dimension may be specified.
